Spline Segment Growth
Repeats your own mesh segments along captured curves. Each piece follows a span of the guide; the source mesh is not continuously bent along the whole curve.
Curves · Assets
Branches

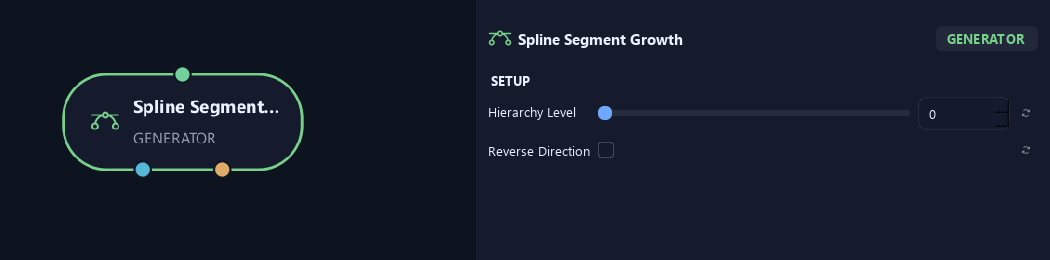

Setup
- Hierarchy Level
Sets the guided branches' starting hierarchy level. Zero is the trunk level; higher values represent later branch layers.
- Reverse Direction
Reverses the guide so its opposite end becomes the base.

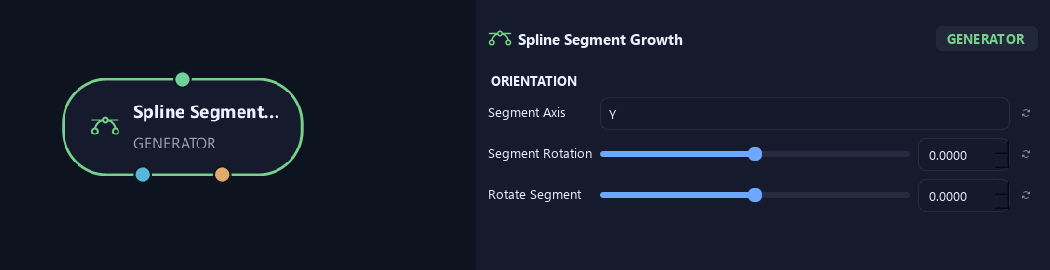

Orientation
- Segment Axis
Chooses the source mesh's length axis. Mesh bounds define its endpoints.
- Segment Rotation
Rotates all repeated pieces around their length axis.
- Rotate Segment
Adds extra rotation for each successive piece along the guide.

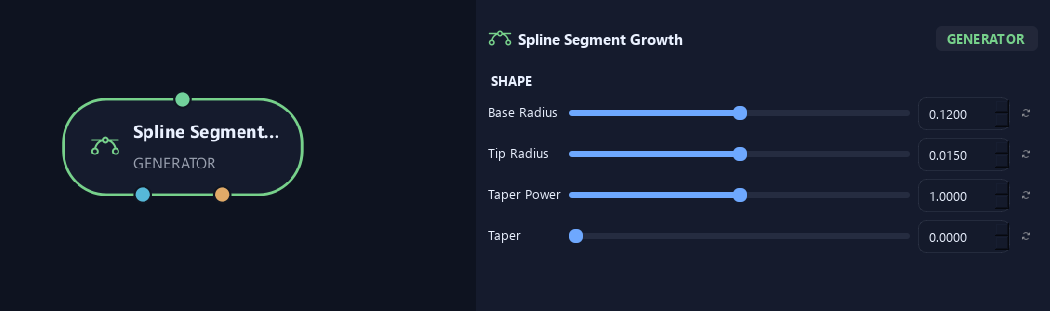

Shape
- Base Radius
Sets the radius at the guide's start.
- Tip Radius
Sets the radius at the guide's end.
- Taper Power
Changes how quickly the guide narrows between its base and tip radius. One gives an even transition.
- Taper
Narrows segment geometry around a split. Zero keeps its width; high values leave a thin connection.

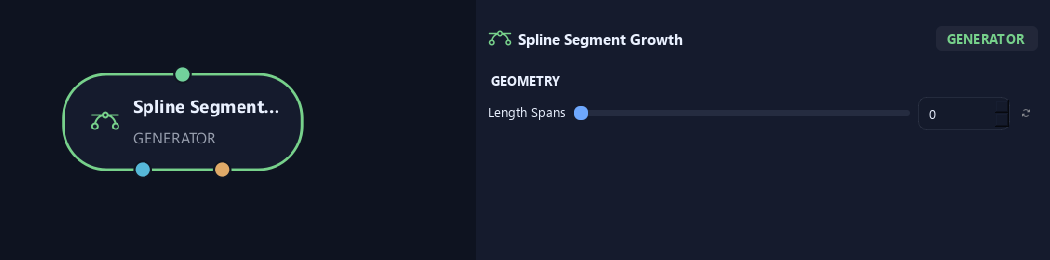

Geometry
- Length Spans
Sets spans along the guide. Zero keeps captured samples; higher values resample to that many evenly spaced spans.

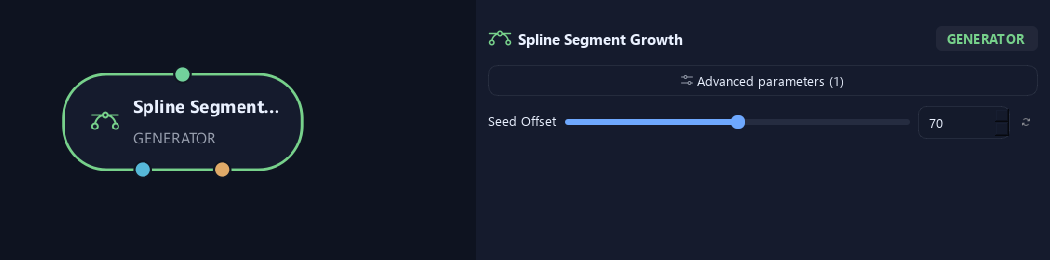

Advanced
- Seed Offset
Changes this node's random variation. Keep the seed and settings unchanged to reproduce the same result.
