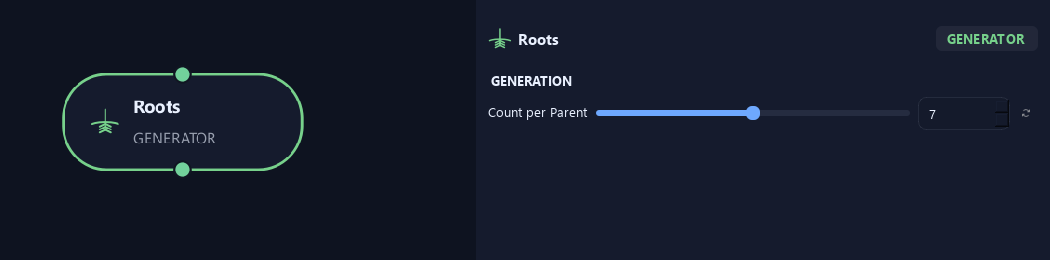

Generation

Count per Parent

Sets new growth per parent. Random, Parallel and Alternating count individual children. Opposite counts sites with two children each; Whorled counts sites with Whorl Count children each. Count 8 and Whorl Count 3 produce 24 children before any split-range allocation.

Default: 7

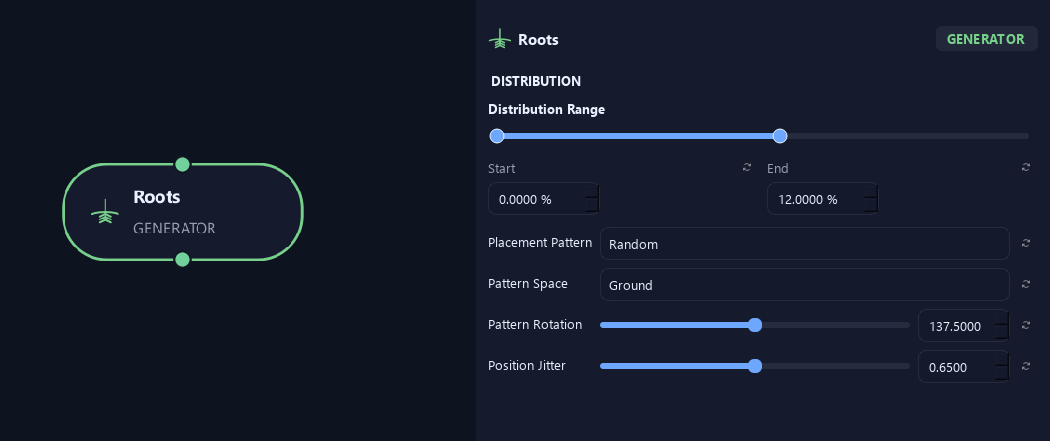

Distribution

Distribution Range — Start %

Sets where placement begins on the parent. Zero is the base and one is the tip; the range slider displays percentages.

Default: 0

Distribution Range — End %

Sets where placement ends. Together with Start, this defines the Distribution Range.

Default: 0.12

Placement Pattern

Random distributes freely. Parallel pairs a total child count. Alternating switches sides along the parent. Opposite creates two children per site. Whorled creates a ring of children per site.

Options: Random · Parallel · Alternating · Opposite · Whorled

Default: Random

Pattern Space

Ground aligns the pattern to the horizontal world plane. Parent turns it with the branch. Opposite and Whorled always follow the parent.

Available when Placement Pattern is Random or Parallel or Alternating.

Options: Ground · Parent

Default: Ground

Pattern Rotation

Rotates each successive site around the parent. With Opposite, zero aligns pairs and 90 degrees crosses each pair over the previous one.

Default: 137.5

Position Jitter

Loosens spacing along the parent while keeping paired sites together.

Default: 0.65

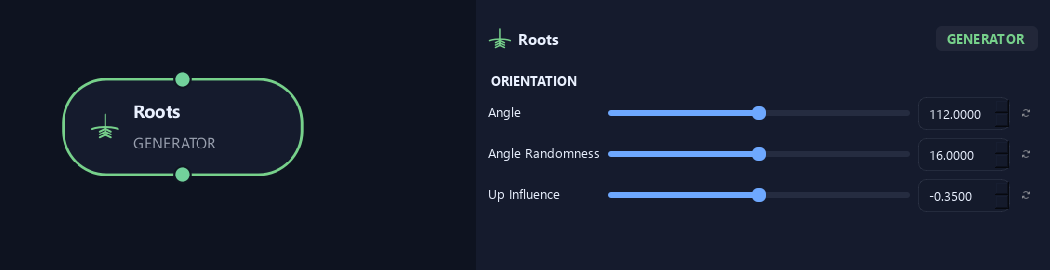

Orientation

Angle

Sets the angle away from the parent direction. Small values follow it; larger values open the growth outward.

Default: 112

Angle Randomness

Varies the angle between branches or leaves. Zero keeps it consistent.

Default: 16

Up Influence

Biases the growing direction upward. Negative values bias it downward.

Default: -0.35

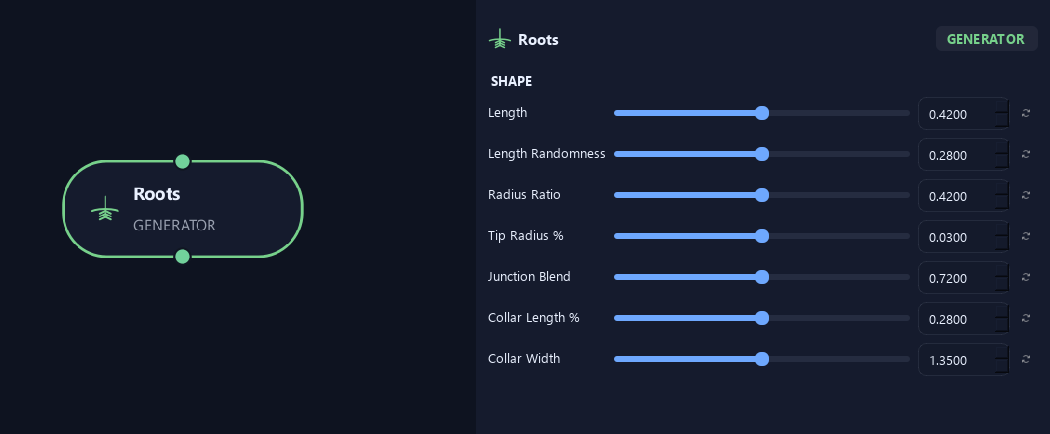

Shape (1)

Length

Sets child length relative to parent length. For example, 0.5 starts at half the parent length, before profiles and randomness.

Default: 0.42

Length Randomness

Varies length between branches. Zero keeps lengths consistent.

Default: 0.28

Radius Ratio

Sets child base radius relative to parent radius at the attachment.

Default: 0.42

Tip Radius %

Sets tip radius as a fraction of child base radius. For example, 0.08 leaves 8% at the tip.

Default: 0.03

Junction Blend

Softens the change in direction and thickness at the parent connection. Zero makes a harder junction.

Default: 0.72

Collar Length %

Sets the fraction of the root used for the trunk transition.

Default: 0.28

Collar Width

Widens the embedded root base, fading back to the chosen root thickness.

Default: 1.35

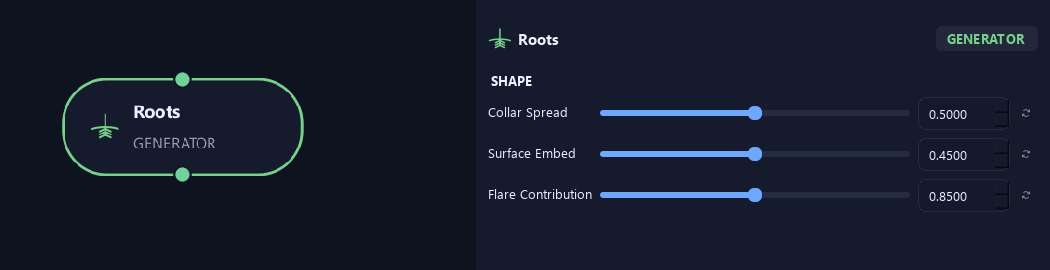

Shape (2)

Collar Spread

Controls how widely the root expands the lower trunk outline.

Default: 0.5

Surface Embed

Keeps the open root base inside the trunk collar instead of floating on its surface.

Default: 0.45

Flare Contribution

Sets how strongly the root adds a lobe to the flared trunk base.

Default: 0.85

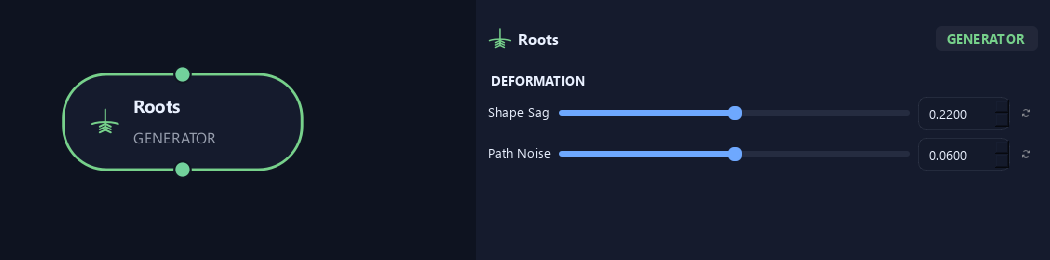

Deformation

Shape Sag

Adds sag to the new branch shape. Positive droops; negative lifts.

Default: 0.22

Path Noise

Adds small irregular bends to the generated path.

Default: 0.06

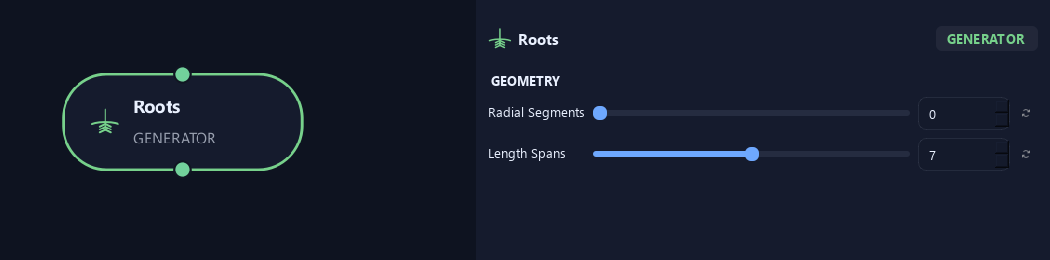

Geometry

Radial Segments

Sets sides around the branch tube. More sides look rounder. Where zero is available, it inherits Output.

Default: 0

Length Spans

Sets spans along the branch. More spans allow smoother bends and add geometry.

Default: 7

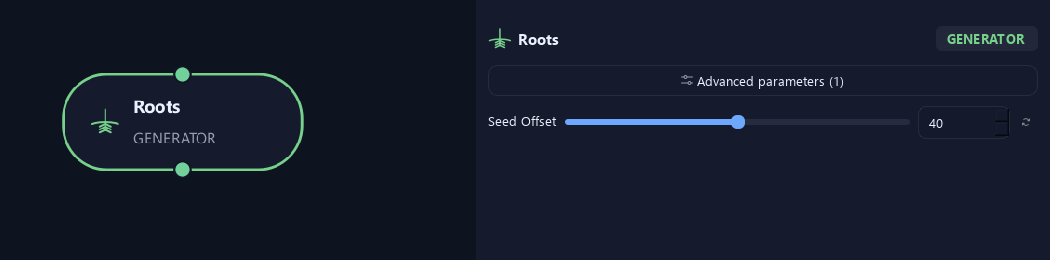

Advanced

Seed Offset

Changes this node's random variation. Keep the seed and settings unchanged to reproduce the same result.

Default: 40

Distribution

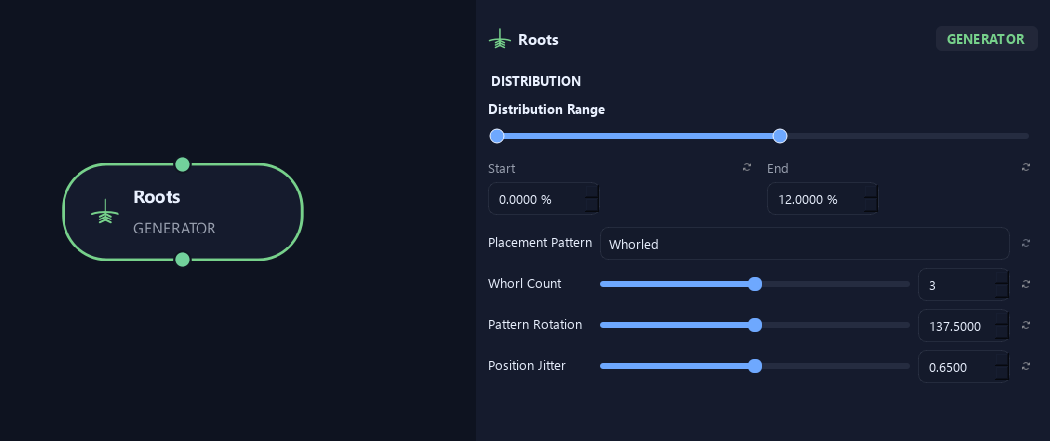

Shown example: Placement Pattern = Whorled.

Distribution Range — Start %

Sets where placement begins on the parent. Zero is the base and one is the tip; the range slider displays percentages.

Default: 0

Distribution Range — End %

Sets where placement ends. Together with Start, this defines the Distribution Range.

Default: 0.12

Placement Pattern

Random distributes freely. Parallel pairs a total child count. Alternating switches sides along the parent. Opposite creates two children per site. Whorled creates a ring of children per site.

Options: Random · Parallel · Alternating · Opposite · Whorled

Default: Random

Whorl Count

Sets children per site in Whorled mode. Opposite always uses two.

Available when Placement Pattern is Whorled.

Default: 3

Pattern Rotation

Rotates each successive site around the parent. With Opposite, zero aligns pairs and 90 degrees crosses each pair over the previous one.

Default: 137.5

Position Jitter

Loosens spacing along the parent while keeping paired sites together.

Default: 0.65
