AO Studio Tools
Free download

ZenGrove

Grow a plant, one node at a time.

Overview

Grow a plant, one node at a time.

Explore all 44 nodes with illustrated Maya views and plain-English explanations of every setting. Build trunks and branches, place foliage, shape growth, add wind and prepare your output.

View product and license details →

← All 44 nodesForces

Point Force

Pulls growth toward a Maya object or pushes it away. Move the target to guide branches or open a gap in the crown.

Reference updated for ZenGrove 1.0.0-alpha.10.

Connect into this node

Branches

Continue from this node

Branches

Affect

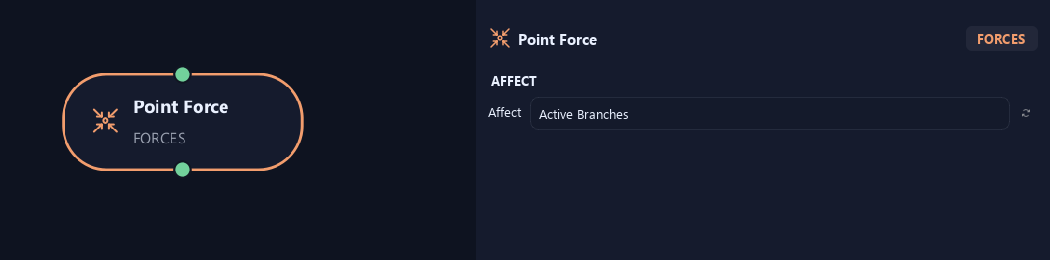

Point Force node with its affect settings in ZenGrove
ZenGrove in Maya · Affect · Open image for full size
Affect

Chooses which branches are affected. Active Branches uses the latest generated layer. Active + Descendants also includes growth from that layer. Active Generated Hierarchy additionally includes ancestors created by that same generated contribution. Entire Input uses everything arriving here. Attached children follow a moved parent even when they are not reshaped themselves.

Options: Active Branches · Active + Descendants · Active Generated Hierarchy · Entire Input

Default: Active Branches

Input

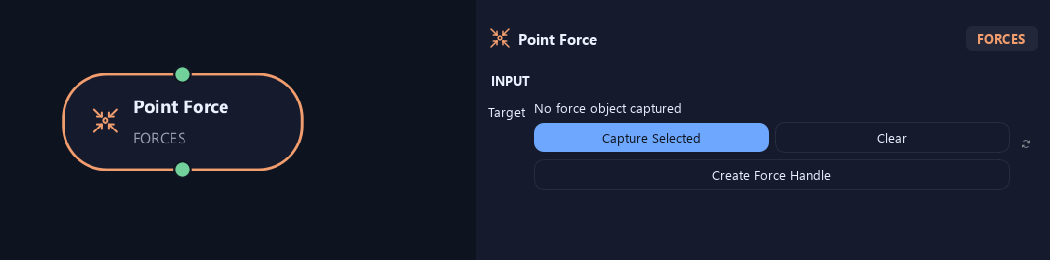

Point Force node with its input settings in ZenGrove
ZenGrove in Maya · Input · Open image for full size
Target

Uses a Maya object's pivot as target. Capture Selected assigns it; Create Force Handle makes an editable handle; Clear removes it.

Default: Nothing assigned

Distribution

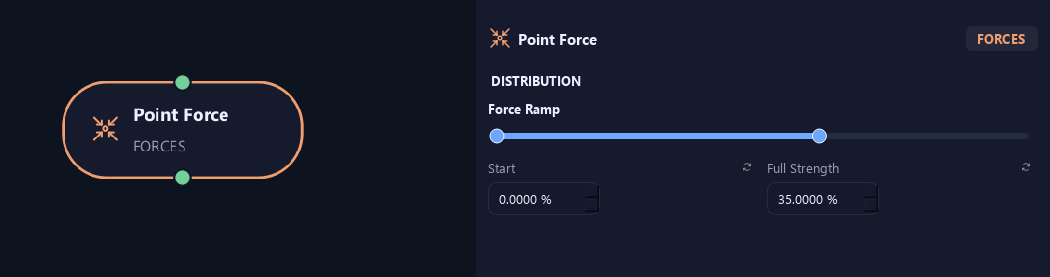

Point Force node with its distribution settings in ZenGrove
ZenGrove in Maya · Distribution · Open image for full size
Force Ramp — Start %

Sets where the force starts along a branch. Zero is base and one is tip.

Default: 0

Force Ramp — Full Strength %

Sets where the force reaches full strength. It ramps between Start and this point, then stays at full strength.

Default: 0.35

Deformation

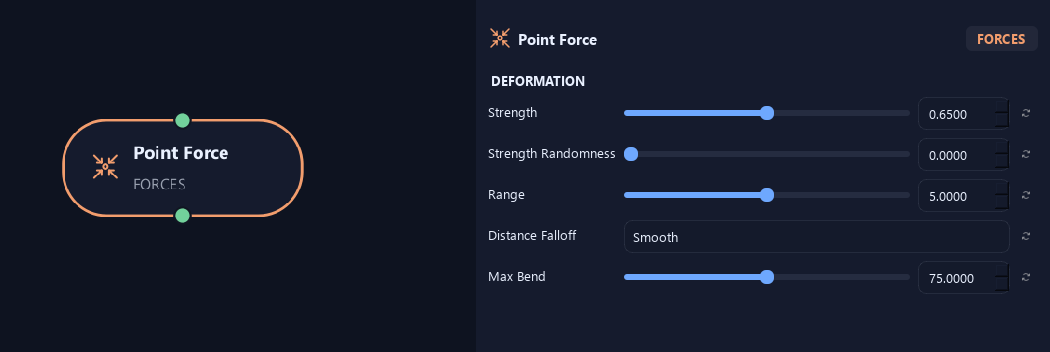

Point Force node with its deformation settings in ZenGrove
ZenGrove in Maya · Deformation · Open image for full size
Strength

Positive attracts toward the target. Negative repels. Zero turns influence off.

Default: 0.65

Strength Randomness

Varies force strength between branches.

Default: 0

Range

Sets influence distance from the target. Zero gives unlimited range.

Default: 5

Distance Falloff

Constant keeps influence even across the range. Linear fades evenly with distance. Smooth gives a softer fade.

Options: Constant · Linear · Smooth

Default: Smooth

Max Bend

Limits total force-driven turning along a branch, in degrees.

Default: 75

Advanced

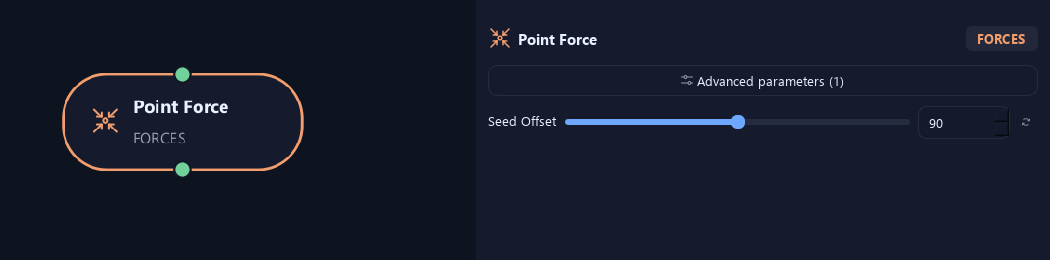

Point Force node with its advanced settings in ZenGrove
ZenGrove in Maya · Advanced · Open image for full size
Seed Offset

Changes this node's random variation. Keep the seed and settings unchanged to reproduce the same result.

Default: 90

Browse all ZenGrove nodes →
