Volume Scatter
Places assets inside or on a captured hull mesh. Use the hull as a volume for a full crown or a surface for repeated details.
Branches · Assets
Growth

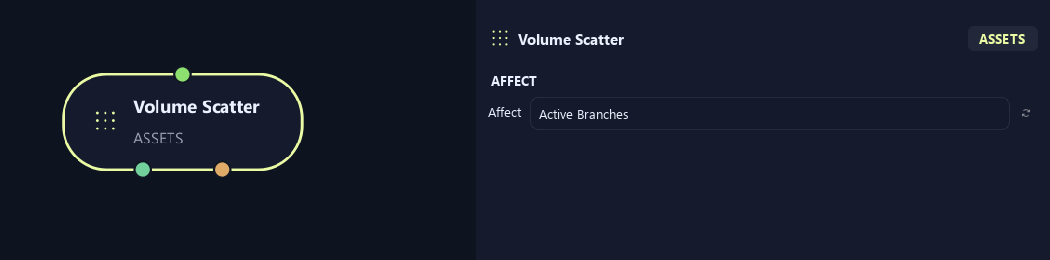

Affect
- Affect
Chooses which branches are affected. Active Branches uses the latest generated layer. Active + Descendants also includes growth from that layer. Active Generated Hierarchy additionally includes ancestors created by that same generated contribution. Entire Input uses everything arriving here. Attached children follow a moved parent even when they are not reshaped themselves.

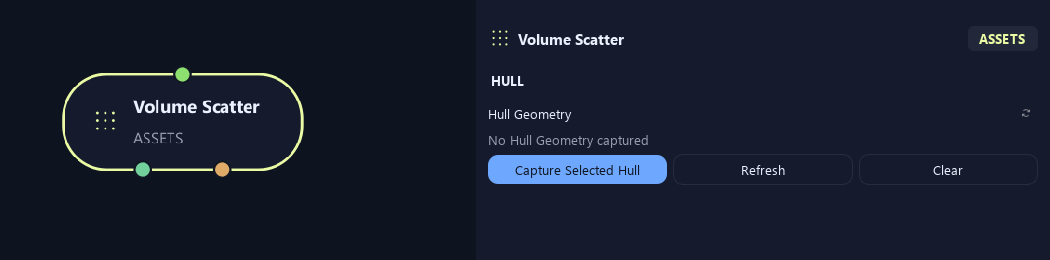

Hull
- Hull Geometry
Capture Selected Hull assigns a polygon boundary. Refresh updates it after edits; Clear removes it. Edit Hull selects the captured hull when available.

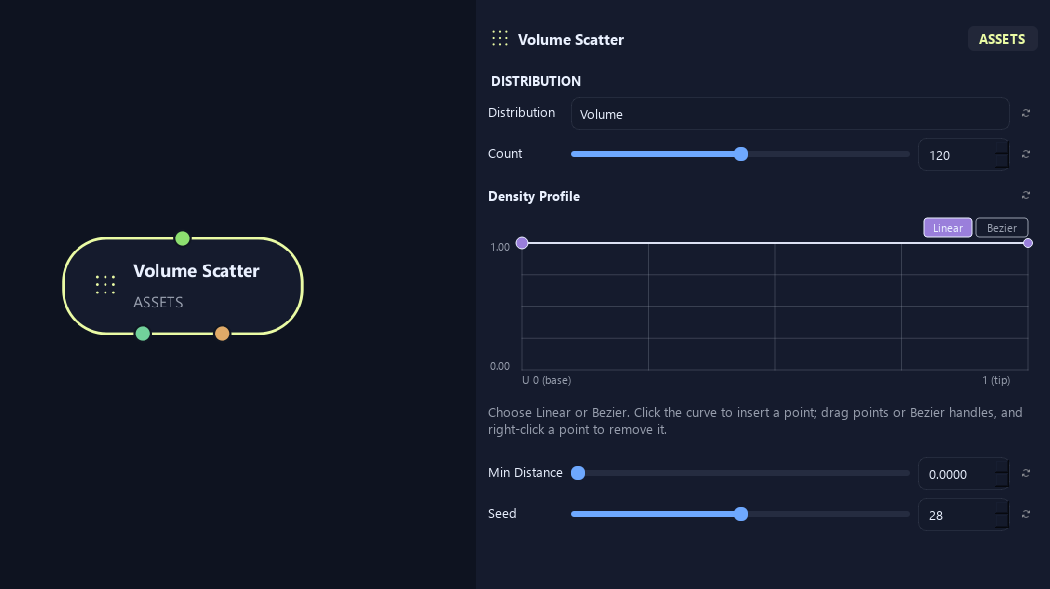

Distribution
- Distribution
Volume places assets inside the hull. Surface places them on its outer surface.
- Count
Sets requested placements in or on the hull. Spacing and available area can reduce the final count.
- Density Profile
Controls placement probability along the supporting branch. Left is base and right is tip. One keeps placements; zero rejects them in that region.
- Min Distance
Keeps placements apart where possible. Large spacing or a small hull can reduce the final count.
- Seed
Changes this node's random variation. Keep the seed and settings unchanged to reproduce the same result.

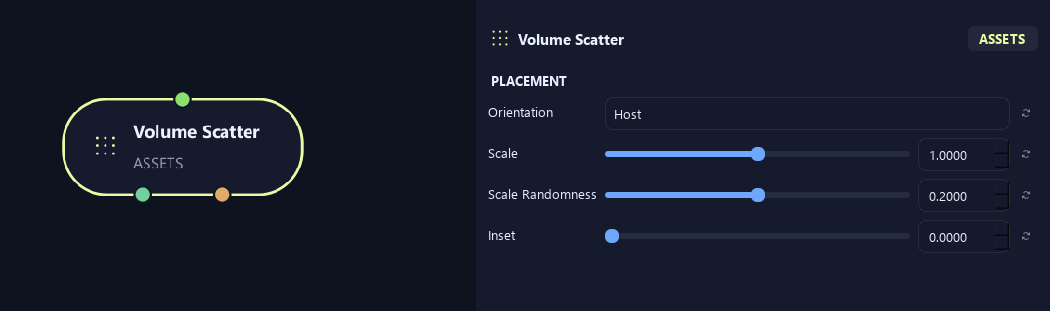

Placement
- Orientation
Host follows the supporting branch. Outward points away from the hull center. Surface Normal follows its surface direction. Up points toward world up.
- Scale
Scales the asset or generated child uniformly. One keeps its size; 0.5 halves it.
- Scale Randomness
Varies size between placements. Zero keeps one scale multiplier.
- Inset
Moves placements inward from the hull surface.

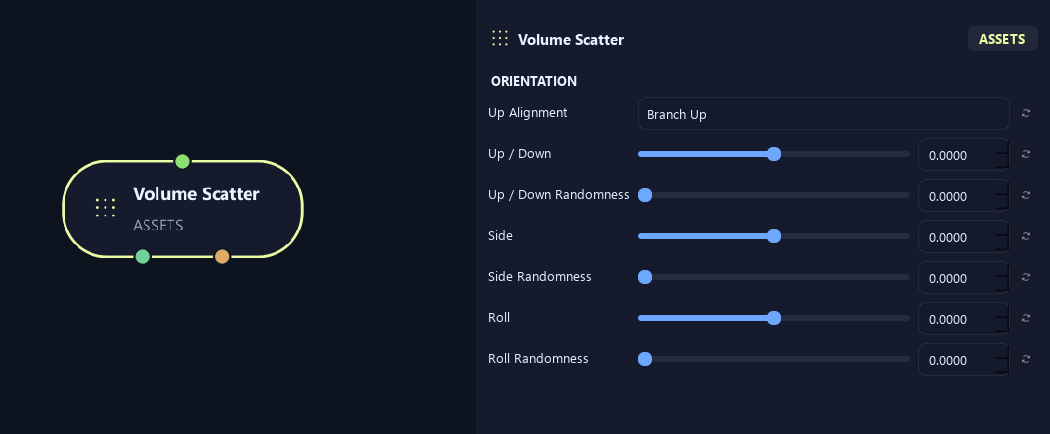

Orientation
- Up Alignment
Branch Up follows local branch up. World Up uses scene up. Free removes that alignment for a less constrained orientation.
- Up / Down
Tilts the leaf or asset up or down. Positive lifts the tip; negative lowers it.
- Up / Down Randomness
Varies up/down tilt between placements.
- Side
Turns the asset sideways in its local orientation.
- Side Randomness
Varies sideways angle between placements.
- Roll
Rolls the asset around its length direction.
- Roll Randomness
Varies roll between placements.

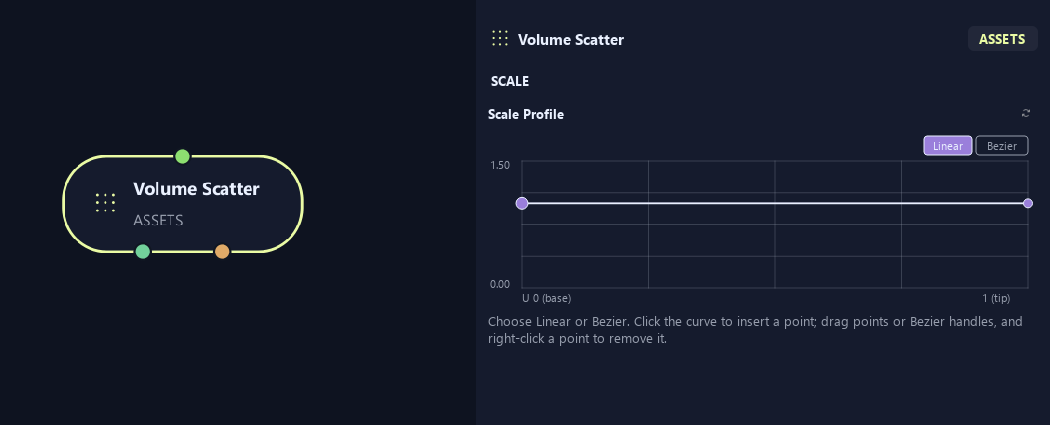

Scale
- Scale Profile
Multiplies size along the supporting branch from base on the left to tip on the right.
